TRAILERS PARTS > S-CAMSHAFTS > QUICK IDENTIFICATION GUIDE
| Cam Length |

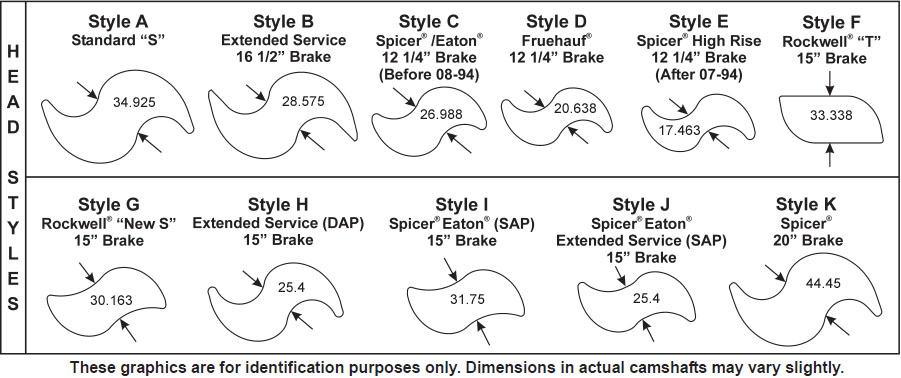

Head Style | Diameter at Spline End & No. of Splines | Diameter at Spider | Spicer Part Number |
Side | Axle Type* | Brake Manufacturer | Brake Size | Notes | |
| 176.213 | B | 38.10 | 28 | 38.10 | 18-670 18-671 |
RH LH |
D | Spicer | 419.10 | "XL" and “XLII” Brakes; 5", 6" and 7" Brakes |
| 180.975 | G | 31.75 | 24 | 31.75 | 18-902 18-903 |
RH LH |
S | Rockwell | 381.0 | “Q” Brake; 2" Offset Backing Plate |
| 187.325 | A | 38.1 | 10 | 38.1 | 17-608 17-609 |
RH LH |
T | Spicer | 419.10 | Spicer Custom Trunnion Suspension; 1 38.1 tip |
| 192.088 | F | 38.1 | 10 | 38.1 | 18-842 18-843 |
RH LH |
S | Rockwell | 381.0 | "T" Series Brake |
| 193.675 | A | 38.1 | 10 | 38.1 | 17-610 17-611 |
RH LH |
T | Spicer | 419.10 | Spicer Custom Trunnion Suspension; 1 38.1 tip |
| 193.675 | I | 31.75 | 10 | 31.75 | 18-760 18-761 |
RH LH |
S | Eaton | 381.0 | Single Anchor Pin (SAP) |
| 193.675 | J | 31.75 | 10 | 31.75 | 18-960 18-961 |
RH LH |
S | Eaton | 381.0 |
Extended Service Brake (ES™); Single Anchor Pin (SAP) |
| 194.469 | F | 31.75 | 10 | 31.75 | 18-1129 18-1130 |
RH LH |
S | Rockwell | 381.0 | "T" Series Brake |
| 194.469 | G | 31.75 | 10 | 31.75 | 18-954 18-955 |
RH LH |
S | Rockwell | 381.0 | "T" Series Brake; New Style S-Head |
| 196.056 | B | 38.1 | 28 | 38.1 | 18-500 18-501 |
RH LH |
D | Rockwell | 419.10 | “Q Plus” Brake |
| 196.056 | A | 38.1 | 28 | 38.1 | 18-796 18-797 |
RH LH |
D | Rockwell | 419.10 | |
| 196.056 | G | 31.75 | 24 | 31.75 | 18-904 18-905 |
RH LH |
S | Rockwell | 381.0 | “Q” Brake; 2" Offset Backing Plate |
| 196.85 | A | 38.1 | 28 | 38.1 | 18-640 18-641 |
RH LH |
D | Spicer | 419.1 | 5", 6", and 7" Brakes 127.0, 152.48 177.8 |
| 199.231 | A | 38.1 | 10 | 38.1 | 18-988 18-989 |
RH LH |
D | Rockwell | 368.3 | "W" Brake |
| 200.025 | A | 38.1 | 10 | 38.1 | 18-802 18-803 |
RH LH |
D | Rockwell | 419.1 | |
| 201.613 | A | 31.75 | 10 | 31.75 | 18-620 18-621 |
RH LH |
S | Spicer | 381.0 | |
| 201.613 | I | 31.75 | 10 | 31.75 | 18-762 18-763 |
RH LH |
S | Eaton | 381.0 | Single Anchor Pin (SAP) |
| 201.613 | F | 31.75 | 10 | 31.75 | 18-856 18-857 |
RH LH |
S | Rockwell | 381.0 | "T" Series Brake |
| 201.613 | G | 31.75 | 24 | 31.75 | 18-890 18-891 |
RH LH |
S | Rockwell | 381.0 | “Q” Brake; 1 1/2" Offset Backing Plate 38.1 |
| 201.613 | G | 31.75 | 10 | 31.75 | 18-950 18-951 |
RH LH |
S | Rockwell | 381.0 | "T" Series Brake; New Style S-Head |
| 201.613 | J | 31.75 | 10 | 31.75 | 18-962 18-963 |
RH LH |
S | Eaton | 381.0 | Extended Service Brake (ES™); Single Anchor Pin (SAP) |
| 203.994 | F | 38.1 | 10 | 38.1 | 18-844 18-845 |
RH LH |
S | Rockwell | 381.0 | "T" Series Brake |
| 204.788 | B | 38.1 | 28 | 38.1 | 18-502 18-503 |
RH LH |
D | Rockwell | 419.1 | “Q Plus” Brake |
| 204.788 | A | 38.1 | 10 | 38.1 | 18-854 18-855 |
RH LH |
D | Rockwell | 419.1 | |
| 206.375 | A | 31.75 | 10 | 31.75 | 18-622 18-623 |
RH LH |
S | Spicer | 381.0 | |
| 206.375 | A | 38.1 | 28 | 38.1 | 18-642 18-643 |
RH LH |
D | Spicer | 419.1 | 5", 6" and 7" Brakes 127.0, 152.4 , 177.8 |
| 206.375 | A | 38.1 | 28 | 38.1 | 18-860 18-861 |
RH LH |
D | Rockwell | 419.1 | |
| 207.566 | I | 31.75 | 10 | 31.75 | 18-764 18-765 |
RH LH |
S | Eaton | 381.0 | Single Anchor Pin (SAP) |
| 207.963 | A | 38.1 | 10 | 38.1 | 18-704 18-705 |
RH LH |
S | Bendix | 381.0 | Brazilian Brake |
| 207.963 | J | 31.75 | 10 | 31.75 | 18-964 18-956 |
RH LH |
S | Eaton | 381.0 | Extended Service Brake (ES™); Single Anchor Pin (SAP) |
| 208.756 | F | 38.1 | 10 | 38.1 | 18-846 18-847 |
RH LH |
S | Rockwell | 381.0 | "T" Series Brake |
| 212.725 | J | 31.75 | 10 | 31.75 | 18-966 18-967 |
RH LH |
S | Eaton | 381.0 | Extended Service Brake (ES™); Single Anchor Pin (SAP) |
| 215.106 | G | 31.75 | 24 | 31.75 | 18-892 18-893 |
RH LH |
S | Rockwell | 381.0 | “Q” Brake; 1 1/2" Offset Backing Plate 38.1 |
| 215.90 | A | 38.1 | 28 | 38.1 | 18-644 18-645 |
RH LH |
D | Spicer | 419.1 | 5", 6" and 7" Brakes 127.0, 152.4 , 177.8 |
| 215.90 | F | 38.1 | 10 | 38.1 | 18-848 18-849 |
RH LH |
S | Rockwell | 381.0 | "T" Series Brake |
| 215.90 | F | 31.75 | 10 | 31.75 | 18-858 18-859 |
RH LH |
S | Rockwell | 381.0 | "T" Series Brake |
| 215.90 | G | 31.75 | 10 | 31.75 | 18-952 18-953 |
RH LH |
S | Rockwell | 381.0 | "T" Series Brake; New Style S-Head |
| 216.694 | A | 38.1 | 28 | 38.1 | 18-824 18-825 |
RH LH |
D | Rockwell | 419.1 | |
| 216.694 | G | 31.75 | 24 | 31.75 | 18-894 18-895 |
RH LH |
S | Rockwell | 381.0 | “Q” Brake; 1 1/2" Offset Backing Plate 38.1 |
| 217.488 | B | 38.1 | 28 | 38.1 | 18-504 18-505 |
RH LH |
D | Rockwell | 419.1 | “Q Plus” Brake |
| 217.488 | A | 38.1 | 10 | 38.1 | 18-726 18-727 |
RH LH |
D | Eaton | 419.1 | |
| *Axle Type: S = Steer, D = Drive, T = Trailer | ||||||||||
| All Images and Brand Names are for Reference only | ||||||||||
These parts are WINDSOR parts and not manufactured by OEM's. Original manufacturer's parts picture, name, part numbers and descriptions are quoted for reference only and are not intended to indicate or suggested that replacement parts are made by the OEM.
