TRAILERS PARTS > S-CAMSHAFTS > QUICK IDENTIFICATION GUIDE
| Cam Length |

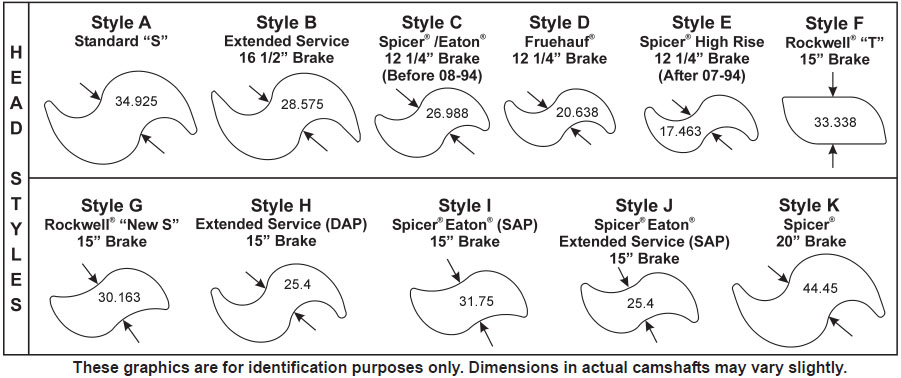

Head Style | Diameter at Spline End & No. of Splines |
Diameter at Spider | Spicer Part Number |
Side | Axle Type* | Brake Manufacturer | Brake Size | Notes | |
| 217.488 | I | 31.75 | 10 | 31.75 | 18-766 18-767 | RH , LH | S | Eaton | 381.0 | Single Anchor Pin (SAP) |
| 217.488 | A | 38.1 | 10 | 38.1 | 18-804 18-805 | RH , LH | D | Rockwell | 419.1 | |
| 217.488 | J | 31.75 | 10 | 31.75 | 18-968 18-969 | RH , LH | S | Eaton | 381.0 | Extended Service Brake (ES™); Single Anchor Pin (SAP) |
| 219.075 | A | 31.75 | 10 | 31.75 | 18-624 18-625 | RH , LH | S | Spicer | 381.0 | |
| 219.075 | B | 38.1 | 10 | 38.1 | 18-940 18-941 | RH , LH | D | Eaton | 419.1 | Extended Service Brake (ES™) |
| 219.869 | F | 38.1 | 10 | 38.1 | 18-882 18-883 | RH , LH | S | Rockwell | 381.0 | "T" Series Brake |
| 222.25 | A | 31.75 | 10 | 31.75 | 18-626 18-627 | RH , LH | S | Spicer | 381.0 | |
| 225.425 | A | 38.1 | 10 | 38.1 | 17-612 17-613 | RH , LH | T | Spicer | 419.1 | Spicer Custom Trunnion Suspension; 1 1/2" tip 38.1 |
| 224.425 | F | 38.1 | 10 | 38.1 | 18-880 18-881 | RH , LH | S | Rockwell | 381.0 | "T" Series Brake |
| 227.013 | A | 38.1 | 10 | 38.1 | 18-728 18-729 | RH , LH | D | Eaton | 419.1 | |
| 227.013 | I | 31.75 | 10 | 31.75 | 18-768 18-769 |
RH , LH | S | Eaton | 381.0 | Single Anchor Pin (SAP) |
| 227.013 | J | 31.75 | 10 | 31.75 | 18-970 18-971 | RH , LH | S | Eaton | 381.0 | Extended Service Brake (ES™); Single Anchor Pin (SAP) |
| 229.394 | A | 38.1 | 28 | 38.1 | 18-646 18-647 | RH , LH | D | Spicer | 419.1 | 5", 6", and 7" Brakes 127.0,152 & 177.8 |
| 230.188 | A | 38.1 | 28 | 38.1 | 18-850 18-851 | RH , LH | D | Rockwell | 419.1 | |
| 230.188 | B | 38.1 | 28 | 38.1 | 18-506 18-507 | RH , LH | D | Rockwell | 419.1 | “Q Plus” Brake |
| 230.981 | A | 38.1 | 10 | 38.1 | 18-794 18-795 | RH , LH | D | Rockwell | 419.1 | |
| 231.775 | F | 38.1 | 10 | 38.1 | 18-884 18-885 | RH , LH | S | Rockwell | 38.10 | ''T'' Series Brake |
| 233.363 | I | 31.75 | 10 | 31.75 | 18-770 18-771 | RH , LH | S | Eaton | 381.0 | Single Anchor Pin (SAP) |
| 233.363 | J | 31.75 | 10 | 31.75 | 18-972 18-973 | RH , LH | S | Eaton | 381.0 | Extended Service Brake (ES'')
Single Anchor Pin (SAP) |
| 234.95 | A | 31.75 | 10 | 31.75 | 18-628 18-629 | RH , LH | S | Spicer | 381.0 | |
| 234.95 | A | 38.1 | 28 | 38.1 | 18-862 18-863 | RH , LH | D | Rockwell | 419.1 | |
| 234.95 | F | 31.75 | 10 | 31.75 | 18-872 18-873 | RH , LH | S | Rockwell | 381.0 | ''T'' Series Brake |
| 234.95 | G | 31.75 | 24 | 31.75 | 18-896 18-897 | RH , LH | S | Rockwell | 381.0 | ''Q'' Brake offset Backing Plate |
| 234.95 | G | 31.75 | 10 | 31.75 | 18-956 18-957 | RH , LH | S | Rockwell | 381.0 | ''T'' Series Brake; New Style S Head |
| 236.538 | G | 31.75 | 24 | 31.75 | 18-906 18-907 | RH , LH | S | Rockwell | 381.0 | ''Q'' Brake 2'' offset Backing Plate |
| 236.538 | H | 38.1 | 28 | 38.1 | 18-936 18-937 | RH , LH | S | Rockwell | 381.0 | ''Q Plus'' Brake; Dual Anchor Pin (DAP) |
| 239.713 | B | 38.1 | 28 | 38.1 | 18-508 18-509 | RH , LH | D | Rockwell | 419.1 | ''Q Plus'' Brake |
| 239.713 | H | 38.1 | 28 | 38.1 | 18-938 18-939 | RH , LH | S | Rockwell | 381.0 | ''Q Plus'' Brake; Dual Anchor Pin (DAP) |
| 240.506 | G | 31.75 | 24 | 31.75 | 18-898 18-899 | RH , LH | S | Rockwell | 381.0 | ''Q'' Brake offset Backing Plate |
| 240.903 | A | 38.1 | 10 | 38.1 | 18-782 18-783 | RH , LH | D | Rockwell | 419.1 | |
| 241.3 | A | 37.75 | 10 | 37.75 | 18-630 18-631 | RH , LH | S | Spicer | 381.0 | |
| 241.3 | A | 38.1 | 28 | 38.1 | 18-864 18-865 | RH , LH | D | Rockwell | 419.1 | |
| 242.094 | F | 31.75 | 10 | 31.75 | 18-874 18-875 | RH , LH | S | Rockwell | 381.0 | "T' Series Brake |
| 242.094 | G | 31.75 | 24 | 31.75 | 18-900 18-901 | RH , LH | S | Rockwell | 381.0 | ''Q'' Brake Offset Backing Plate |
| 242.094 | G | 31.75 | 10 | 31.75 | 18-958 18-959 | RH , LH | S | Rockwell | 381.0 | '' T '' Series Brake; New Style S -Head |
| 242.888 | I | 31.75 | 10 | 31.75 | 18-772 18-773 | RH , LH | S | Eaton | 381.0 | Single Anchor Pin (SAP) |
| 242.888 | J | 31.75 | 10 | 31.75 | 18-974 18-975 | RH , LH | S | Eaton | 381.0 | Extended Service Brake (ES) Single Anchor Pin (SAP) |
| 247.65 | A | 38.1 | 28 | 38.1 | 18-888 18-889 | RH , LH | D | Rockwell | 419.1 | |
| 248.444 | I | 31.75 | 10 | 31.75 | 18-774 18-775 | RH , LH | S | Eaton | 381.0 | Single Anchor Pin (SAP) |
| 249.238 | A | 38.1 | 10 | 38.1 | 18-730 18-731 | RH , LH | D | Eaton | 419.1 | |
| 249.238 | F | 31.75 | 10 | 31.75 | 18-876 18-877 | RH , LH | S | Rockwell | 381.0 | ''T'' Series Brake |
| *Axle Type: S = Steer, D = Drive, T = Trailer | ||||||||||
| All Images and Brand Names are for Reference only | ||||||||||
These parts are WINDSOR parts and not manufactured by OEM's. Original manufacturer's parts picture, name, part numbers and descriptions are quoted for reference only and are not intended to indicate or suggested that replacement parts are made by the OEM.
